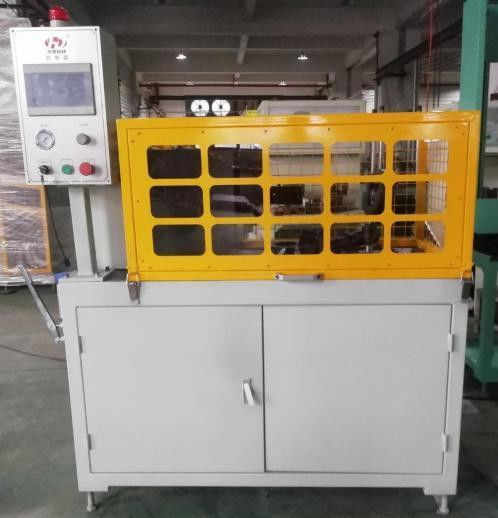

This equipment is a special equipment for fatigue test on the welding of automobile shock absorber
bracket (assembly) and outer tube. This equipment is mainly composed of a motor drive system, an air
pressure system, a lateral jacking system, and an electronic control system. The equipment is driven by a
geared motor to drive the spindle, and the sample is rotated according to a certain frequency. The lateral force is applied to the sample through the lateral jacking system to complete the welding strength fatigue test of the sample. The electronic control system is equipped with a microcomputer control system to ensure the stability of the test process, and is operated and controlled by a touch screen controller, which is intuitive and
convenient, and can record test data and store it in the controller.
|
S/N |
Item |
Parameter |
Remarks |
| 1 |
Reservoir diameter φ D |
φ30 ~ φ60mm |
|
| 2 |
Tank height L |
300～400mm |
|
| 3 |
Sample speed |
60~ 270 rpm |
|
| 4 |
lateral jacking force |
1300～6000N |
