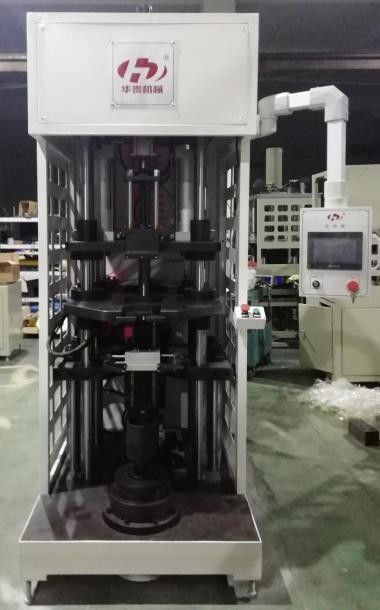

This equipment is specialized equipment designed to add working oil to the train shock absorber assembly and
tighten the sealing end nut. This equipment is mainly of refueling systems, workpiece clamping systems, nut tightening
systems, and electronic control systems. The electronic control system for this equipment adopts a combination of a
microcomputer and touch screen to control and set. The refueling system can set its refueling parameters separately according to the different viscosity of the oil to achieve accurate refueling volume. The tightening system adopts servo motor and
torque sensor to tighten the predetermined torque
|
S/N |
Item |
Parameter |
Remarks |
| 1 |
Reservoir diameter φ D1 |
φ70 ~ φ120mm |
|
| 2 |
Assembly total height L1 |
≤1300mm |
|
|
3 |
Tank assembly height L2 |
180～700mm |
L2520mm Need to add pads |
| 4 |
Piston rod diameter φ d |
φ20 ~ φ28mm |
|
| 5 |
Dust cover diameter φ D2 |
≤ φ130mm |
|
| 6 |
Single refueling volume |
0～999ml |
|
| 7 |
Oiling accuracy |
±10ml |
